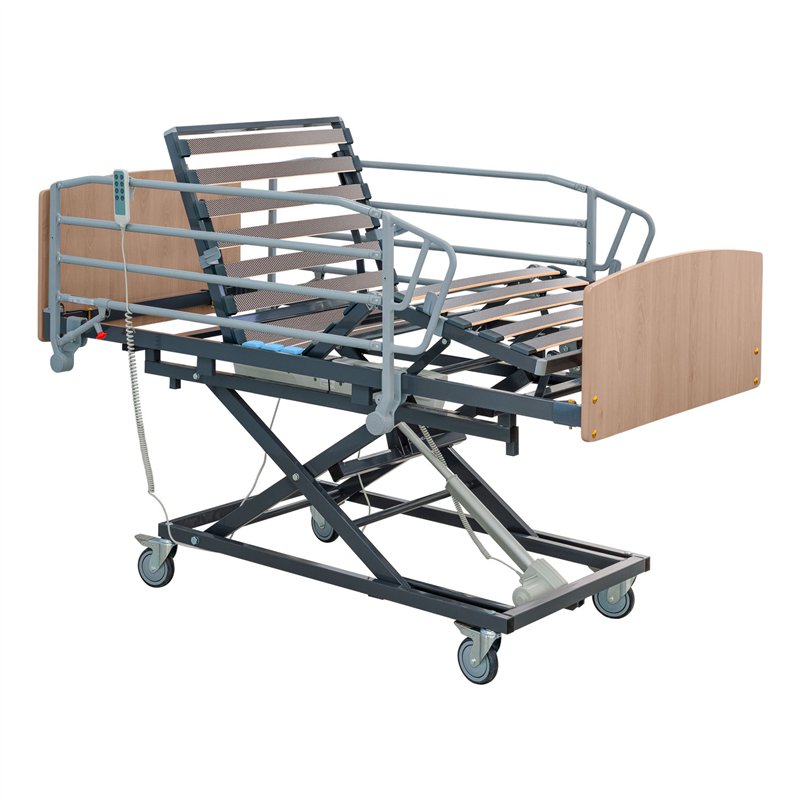

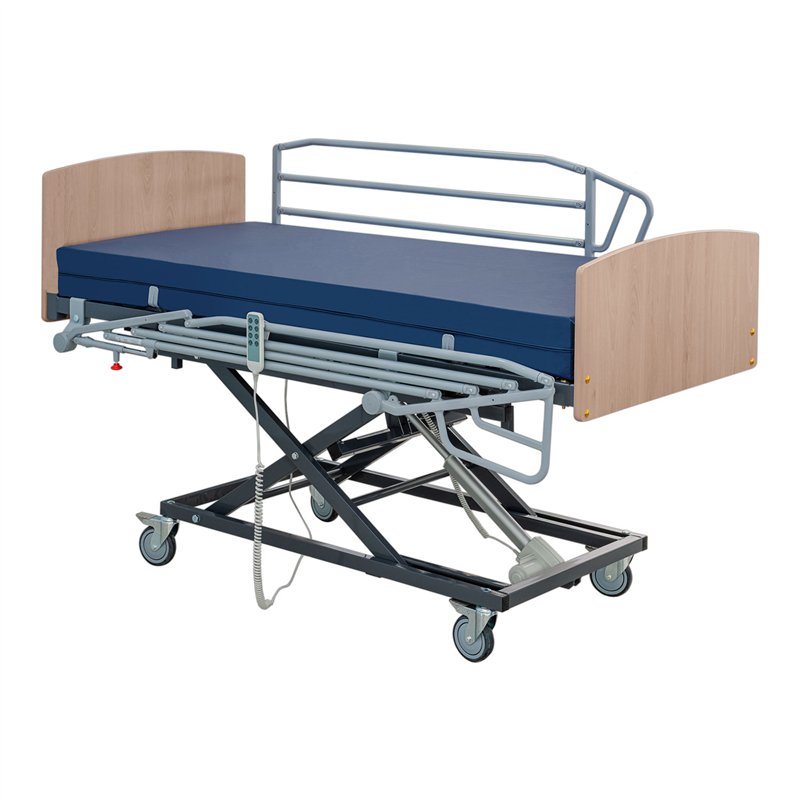

Assisted care bed with lifting frame and anti-decubitus mattress

This hospital bed offers excellent performance thanks to the quality of the materials used in its manufacture, resulting in a comfortable and unique rest experience. It is a very robust and durable bed designed to help people with illnesses, those recovering from illness, or those with mobility issues to rest more comfortably.

This set is ideal for people with reduced mobility or the elderly, as it offers comfortable, safe, and accessible rest, creating a welcoming environment where they can feel at home. It combines comfort, stability, and functionality to facilitate daily life and improve quality of life, making it a practical and reliable solution for everyday use.

Benefits of this hospital bed

• Greater adaptability to any mattress, thanks to its 4-plane articulation system.
• Lumbar area reinforced with firmness adjusters.
• The mattress provides proper resistance and support thanks to its metal frame and non-slip rod.
• Great comfort thanks to its electric articulation via a wired remote control. This remote allows independent or combined operation of the headboard and footboard in single sizes, and a single articulation of the headboard and footboard in double sizes.
• Silent rest due to its high suspension rubber joints.
• Anti-slip treatment on the sheets.
• It supports weights up to 150 kg.
• The articulation of this bed frame should always be performed from the completely flat position with the sleeper lying on the mattress. Never sit on parts that have already been articulated.

Characteristics of the healthcare facility.

• Steel tube structure with a minimum thickness of 1.5 mm.
• Finished in silver epoxy paint. High impact resistance.
• 4 articulated planes.
• Polyamide joints that guarantee the absence of noise and the smoothness of movement.
• Compact and soundproof double electronic motor, low voltage (24 V cc ).
• Battery for lowering the bed in case of power failure.
• Wired electronic control.
• Slats made of 100% steamed beech plywood. With a textured metallic gray melamine finish.
• Lumbar zone with firmness adjustment system.

State-of-the-art lifting trolley.

• Scissor lift system that guarantees maximum stability to the assembly.
• Watertight motor that allows the bed to rise and fall in parallel.
• Carriage and bed operation via integrated function control.
• Individual braking on all 4 wheels with 360º rotation.

Prevent Anti-Decubitus Mattress

• 10 cm high density HR core with 5 cm anti-decubitus viscoelastic foam.
• Self-extinguishing and fireproof.
• High adaptability, open pore and low pressure at the dermal level.
• Efficient temperature/humidity control.
• Exclusive Case.
• Waterproof and breathable only the top part.
• Long travel "L" rack.
• Wash up to 95º.
• Sanitized antibacterial, antifungal and antimold treatment.

Measures

• Bed width: 90cm
• Bed length: 190 cm
• Total height including legs when raised: up to 80 cm (+/- 3 cm).
• Anti-decubitus mattress height 15 cm.

Product manufactured in Spain, under ISO-9001:2000 standards

Aznar Mattresses offers a 3-year warranty on this adjustable care bed.
The electric bed with lifting frame is from the general catalog of Colchones Aznar .
